What Is an Alternator and How Does It Work?

What Is an Alternator and How Does It Work?
21 March, 2022

You may think your battery is powering all things electrical in your car, be it your windshield wipers, headlights or radio. In reality, it’s the car alternator that produces the majority of your vehicle’s electricity — your battery is mainly just used to start your vehicle and provide power when the engine isn’t running. The alternator is a critical component of a car’s charging system, so it’s helpful to understand how it operates in case you have to deal with your car not starting.

WHAT IS AN ALTERNATOR?

The alternator is a generator whose purpose is to distribute electricity to the car and recharge the battery. Outside of some hybrid models, all vehicles with a standard internal combustion engine will have an alternator. About the size of a coconut, the alternator is generally mounted to the front of the engine and has a belt running around it.

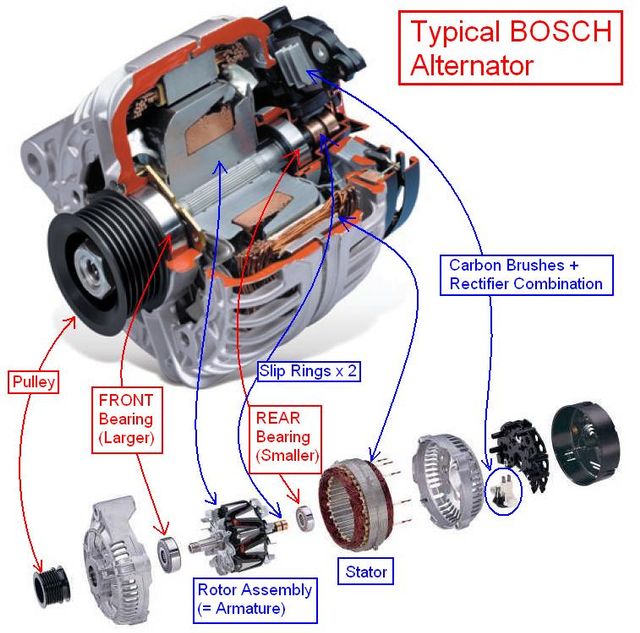

COMPONENTS OF AN ALTERNATOR

The components of an alternator are geared toward providing the right type and right amount of power to the vehicle. Your car’s charging system contains many parts, but these are the main components and their functions:

Rotor and stator

The rotor and stator are the electricity-producing components of an alternator. The rotor, a cylindrical piece surrounded in magnets, spins inside of the stator, which holds a fixed set of conductive copper wiring. The movement of the magnets over the wiring is what ultimately creates electricity.

Voltage regulator

The voltage regulator oversees the power the alternator makes. It monitors the level of voltage that is output to the battery and delivers power to the rest of the vehicle.

Diode rectifier

The diode rectifier converts the voltage from the alternator into a form that can be used by the battery to recharge.

Cooling fan

Alternators give off a lot of heat and need to be cooled to operate efficiently. While they’re built with vents and aluminum casing to better release heat, they’re also equipped with rotating fans for added cooling. New alternator models have internal cooling fans, whereas older versions tend to have external fan blades.

HOW AN ALTERNATOR WORKS

What does an alternator do? As we know, the alternator provides your car with the bulk of its electricity and helps recharge the battery. But to do all of that, the alternator must first turn mechanical energy into electricity.

HOW THE ALTERNATOR PRODUCES ELECTRICITY?

The process of producing electricity begins with the engine. For most modern vehicles, alternators are driven by the engine’s crankshaft via a serpentine belt, though older vehicles may have a separate pulley going from the crankshaft to the alternator. The belt’s movement — the mechanical energy — spins the alternator’s rotor at a high speed within the stator

Electricity is made as the rotor spins. The magnets surrounding the rotor are deliberately placed so that as they pass over the copper wiring in the stator, a magnetic field is created. This magnetic field, in turn, produces voltage that is captured by the stator. This power then reaches the voltage regulator, which disperses electricity to the vehicle and manages the amount of voltage the battery receives.

HOW DOES THE ALTERNATOR CHARGE THE BATTERY?

Before the battery can use the power coming from the alternator, it needs to be converted to a format that the battery can use. That’s because electricity can flow in different currents, or directions. Car batteries operate on one-way direct current (DC) electricity, while alternators output alternating current (AC) electricity, which occasionally flows in reverse. So prior to going to the voltage regulator, power intended for the battery goes through a diode rectifier to turn into DC. After the conversion, the battery can use the power to recharge.

Like any car part, your alternator can start to decline with time and may need replacement.
