Your Car’s Ignition Switch

Your Car’s Ignition Switch
14 November, 2022

The ignition switch is an essential component of almost every car on the road today. Despite being a crucial component for your car’s operation, the switch is one of the most frequently detected causes of ignition problems, and depending on the type of vehicle you drive, you may be more likely to experience failure. Because of this, we took the time to develop this blog on the ignition switch, which includes some fundamental details about why it’s crucial for your automobile, how to identify issues with it, and what to do to fix or prevent issues.

What is the ignition switch?

New ignition-operating techniques have been developed for most modern automobiles. The idea of the conventional ignition switch is still problematic for many drivers on the road today, regardless of whether your car employs a remote start button or a push-start. Ignition switches don’t often last very long, especially the more abuse and use they receive. The ignition lock cylinder and the ignition switch are both components of an assembly or system. The complete system is in charge of starting your car and supplying electricity to various components, including the engine, ignition, and electrical gadgets. It’s crucial to keep the component in your vehicle because the ignition switch is the first point of entry to the vehicle’s electricity.

The ignition switch generally has four positions: off, accessories, on, and start. Some cars have two off positions, off and lock; one turns off the car, and the other allows the key to be removed from the ignition. When the key is turned to the accessories position, certain accessories, such as the radio, are powered; however, accessories that use too much battery power, such as window motors, remain off in order to prevent the car’s battery from being drained.

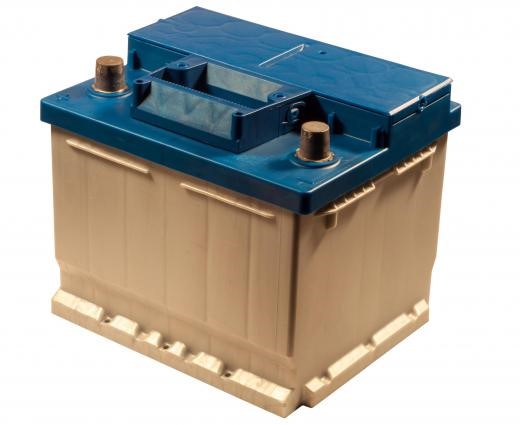

A vehicle’s battery is connected to the starter via an ignition switch.


Because the ignition switch stays in the on position while the engine is running, this position also activates all of the vehicle’s systems, including the fuel pump. The ignition switch is spring-loaded in the start position so that it won’t stay in that position once the key is released. The starter engages when the key is turned to the start position and placed into the ignition switch lock cylinder. When the key is withdrawn, it returns to the on position and turns off the starter. This is because, after the engine is running on its own, the starter gear must be retracted because the engine operates at speeds that the starter cannot match.

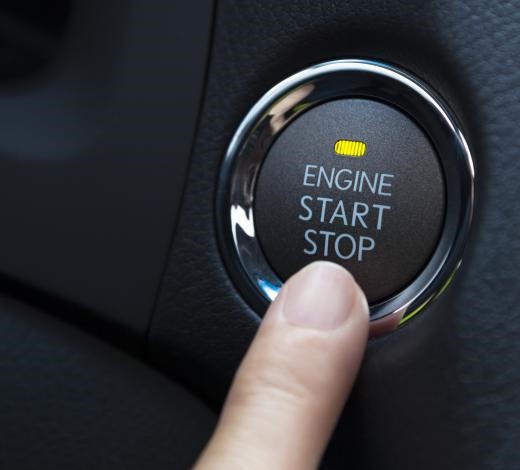

The ignition switch can also be activated via a push button system.

A car’s ignition switch or lock cylinder could malfunction, but the signs of each situation are very different. Typically, electrical wiring or the plastic shell develops issues when the ignition switch fails. When this occurs, the car might not start or turn on. Additionally, the spring-loaded start position could break, in which case the starter would not engage without manually turning the key back to the on position.

When the lock cylinder malfunctions, however, the operation of the key itself will become problematic. If the tumblers become stripped, the lock cylinder may be able to turn with any key, or you may be able to remove the key when the car is on. If the tumblers begin to shift, the lock cylinder may not turn. Sometimes the key can be wiggled until the lock cylinder turns, but it is important to remember that this is only a temporary fix.

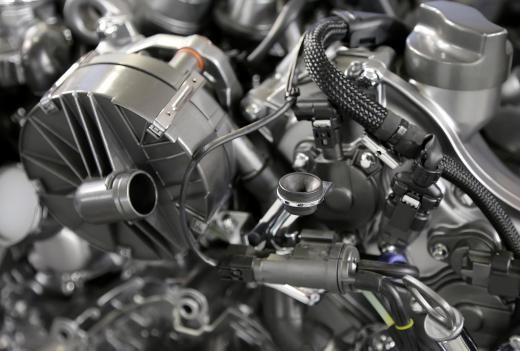

The starter turns the engine’s flywheel.

Because of the anti-theft mechanisms present in contemporary cars, replacing an ignition switch might be challenging. It is crucial that this switch be difficult to get because, once it is detached from the back of the lock cylinder, a screwdriver can be used to start the vehicle. Before attempting this type of repair, it’s vital to study a shop manual because the anti-theft devices can call for specialized tools. If the ignition switch is removed without the right tools, the car might become inoperable.
